NUCLEO-L401RE STM32 Nucleo Development Board in Pakistan | Collegeroad Electronics
₨ 7,000₨ 12,500Save:₨ 5,500(44%)
High-performance ARM Cortex‑M4 32-bit microcontroller with FPU, running at up to 84 MHz. Features include 512 KB Flash, 96 KB SRAM, USB OTG FS, multiple timers, USART, SPI, I²C, and 12-bit ADC. Ideal for embedded systems, IoT, and high-speed control applications. Available in LQFP and UFQFPN packages. Supported by STM32Cube and compatible with Arduino STM32 cores.

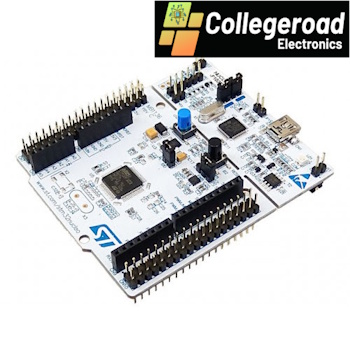

The NUCLEO-L401RE STM32 Nucleo Development Board is a powerful and cost-effective platform for developers and hobbyists. It features the STM32L401 microcontroller with built-in ST-LINK/V2-1 debugger, Arduino™ and ST Morpho headers for easy expansion, and full support for STM32 HAL libraries and mbed development tools — making it ideal for rapid prototyping and embedded system projects.
Features of NUCLEO-L401RE STM32 Nucleo development board:
The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 micro controller line, choosing from the various combinations of performance, power consumption and features. The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.
stm32f401
Technical Specifications:
STM32 Nucleo development board with STM32F401RE MCU, 512KB flash memory
Additional connectivity: Arduino Uno Revision 3 connectivity and St Microelectronics Morpho connection
Debugger/programmer ST-LINK/V2-1 with SWD connector
Selection mode switch to use the kit as a standalone ST-LINK/V2-1
Power supplies: USB VBUS or external source (3.3V, 5V, 7-12V)
Three LEDs: USB communication; user; power
Push button: User and Reset
Interfaces supported on USB: Virtual Com port; Mass storage; Debug port
STM32 online software HAL library
Integrated Development Environments (IDEs) support include IAR, Keil, GCC-based IDEs
System requirements: Windows PC (XP, Vista, 7, 8), USB type A to Mini-B USB
