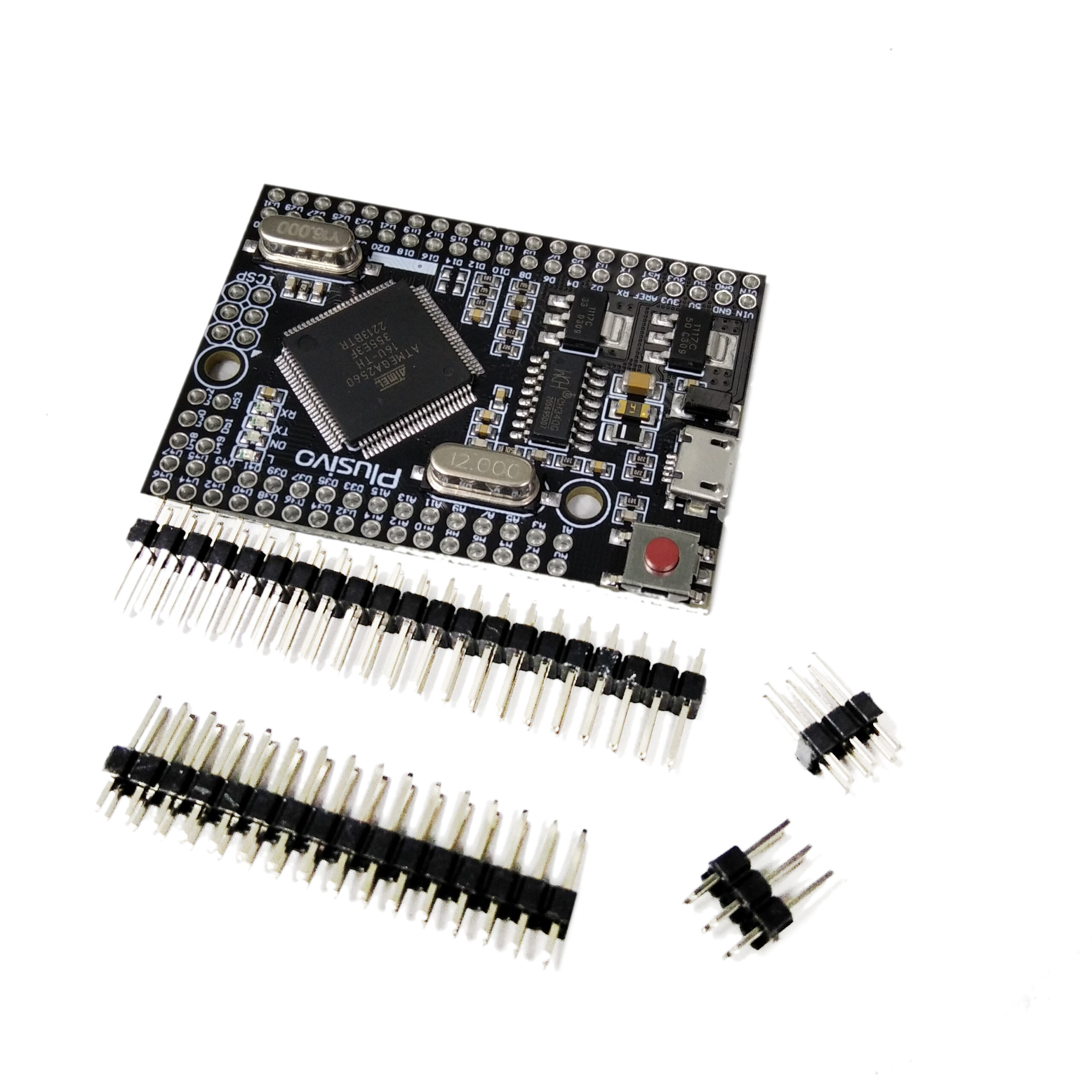

Arduino Mega Mini 2560 PRO Development Board in Pakistan

₨ 3,200

Features

The Arduino Mega Mini 2560 is a compact version of the full-sized Arduino Mega 2560 board, offering the same powerful ATmega2560 microcontroller in a much smaller footprint. It's ideal for advanced embedded systems where space-saving is crucial but high I/O count and memory are still required.

Compare Wishlist

Category: Arduino

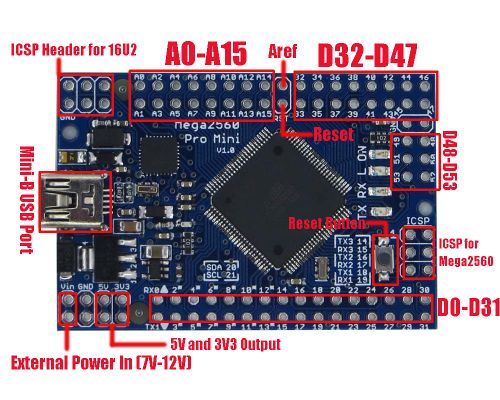

Arduino Mega Mini Specifications:

Feature	Specification
Microcontroller	ATmega2560-16AU
Operating Voltage	5V
Input Voltage (Recommended)	7–12V
Input Voltage (Limits)	6–20V
Digital I/O Pins	54 (of which 15 provide PWM output)
Analog Input Pins	16
DC Current per I/O Pin	40 mA
Flash Memory	256 KB (8 KB used by bootloader)
SRAM	8 KB
EEPROM	4 KB
Clock Speed	16 MHz
USB Interface	Micro-USB (often uses CH340G or similar USB-to-serial chip)
UART	4 (Serial ports)
SPI / I2C	Yes / Yes
Dimensions	~38 mm × 55 mm (may vary slightly by clone)
Weight	Approx. 10–15 g
Form Factor	Compact, breadboard-compatible (not standard Arduino shield size)

Video Demo:

Applications:

Application Area	Examples
3D Printers	Main control boards for machines like Prusa or custom CNC setups
Advanced Robotics	Robots requiring many motor drivers, sensors, and actuators
IoT Gateways	Local control hubs with many wired/wireless peripherals
Home & Industrial Automation	Multi-zone control panels, relay automation, sensor hubs
Data Acquisition Systems	Scientific equipment, field monitoring stations
Wearable & Compact Prototypes	Where full Mega 2560 is too large
Educational Platforms	Teaching multitasking and advanced serial communication
