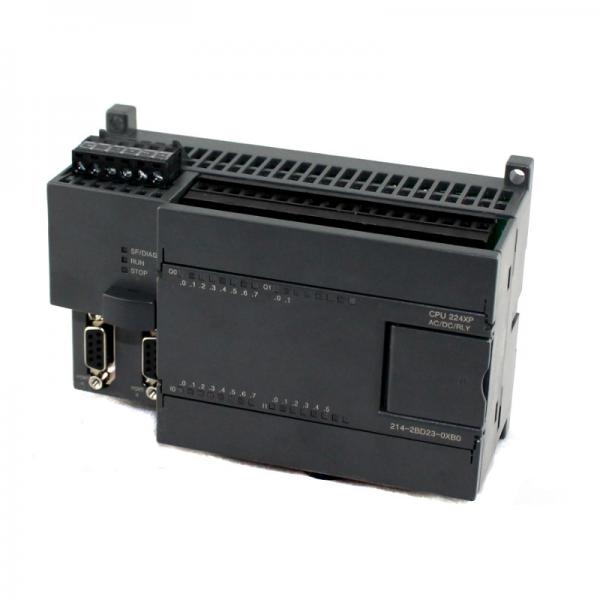

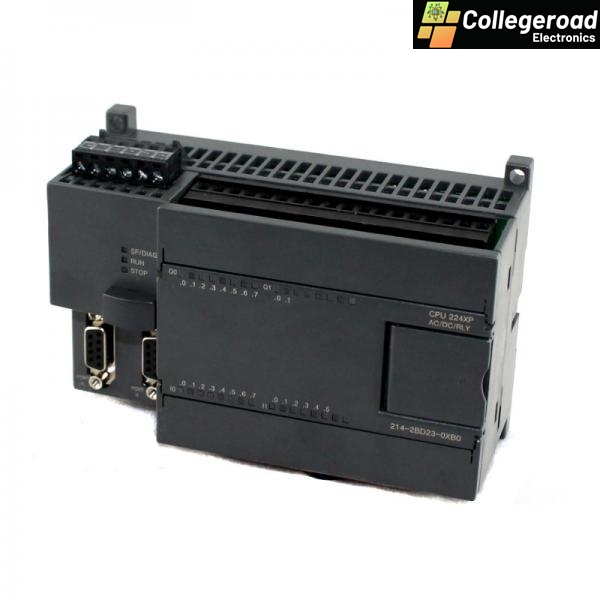

The Siemens S7-200 CPU 224 XP is an advanced and compact programmable logic controller (PLC) that is part of the Siemens S7-200 series. The XP in the model name signifies a version of the CPU with extended features, typically offering more I/O points and enhanced communication capabilities compared to the standard CPU models.

Siemens S7-200 CPU 224 XP Specifications:

1. Processor:

   • CPU Type: The CPU 224 XP is designed to meet the needs of medium-sized automation systems.

   • Processor Speed: The CPU has a processing time of approximately 1 µs per instruction, which allows for fast execution in control processes.

   • Memory:

     • RAM: 2 KB of RAM.

     • EEPROM: 2 KB of user memory for storing programs and data.

     • Retentive Memory: It supports retentive memory for storing data such as timers, counters, and flags even when the power is off.

2. I/O Configuration:

   • Digital Inputs: 14 digital inputs (12V DC).

   • Digital Outputs: 10 digital outputs (12V DC or relay).

   • Analog Inputs: 2 analog inputs (0-10V or 4-20mA).

   • Analog Outputs: 1 analog output (0-10V or 4-20mA).

   • Expansion I/O: It supports additional I/O expansion modules that can be connected to the CPU to increase the number of I/O points.

3. Communication:

   • RS-485 Interface: Built-in RS-485 communication interface for connecting to other devices in a network, such as remote I/O, operator panels, or other PLCs.

   • MPI (Multi-Point Interface): Used for communication with Siemens systems.

   • Modbus Protocol: The CPU 224 XP can communicate using the Modbus RTU protocol, allowing it to integrate with a wide variety of equipment and systems.

4. Power Supply:

   • Input Voltage: 24V DC (direct current).

   • Power Consumption: Typically, around 120 mA at 24V DC, depending on the load and I/O configuration.

5. Programming:

   • Programming Language: The S7-200 CPU 224 XP can be programmed using Ladder Logic (LD), Function Block Diagram (FBD), or Structured Text (ST).

   • Programming Software: STEP 7-Micro/Win is used for programming and configuration of the CPU 224 XP. It allows for easy program creation, simulation, and diagnostics.

6. Size and Mounting:

   • Compact Design: The CPU is designed to be mounted on a DIN rail, which is common in industrial environments.

   • Dimensions: The size is compact, making it suitable for installations with limited space.

   • Weight: Approximately 0.4 kg.

7. Cycle Time:

   • Cycle Time: The cycle time for this CPU is around 1 ms per program step, depending on the complexity of the program.

8. Environmental Specifications:

   • Operating Temperature Range: 0 to 60°C (32 to 140°F).

   • Storage Temperature Range: -40 to 70°C (-40 to 158°F).

   • Protection: IP20 rating for dust and water protection.

9. Extended Features of the XP Version:

   • Increased I/O Capacity: The CPU 224 XP can handle a higher number of I/O points, making it suitable for medium-level control tasks.

   • Communication Flexibility: With additional communication ports, including RS-485 and Modbus, it is easier to integrate the CPU into various communication networks and automation systems.

Applications of the Siemens S7-200 CPU 224 XP:

1. Industrial Automation:

   • The CPU 224 XP is widely used in manufacturing systems, controlling and monitoring machines, production lines, and conveyor belts.

   • Used in systems that require fast and reliable control, such as batch processing, assembly machines, and packaging equipment.

2. Building Automation:

   • Used to automate HVAC systems (heating, ventilation, and air conditioning), lighting controls, and energy management in buildings.

3. Water Treatment Systems:

   • The CPU 224 XP is used for controlling processes such as pumps, valves, and filtration systems in water treatment plants.

4. Machine Control:

   • Used in machine tool control systems, CNC machines, and robotic automation, where precise control of machinery is essential.

5. Energy Management:

   • Can be used in applications involving power distribution, monitoring energy consumption, and controlling solar systems.

6. Remote I/O Systems:

   • The CPU 224 XP is capable of working with remote I/O systems, allowing for distributed control across large areas.

Advantages of the Siemens S7-200 CPU 224 XP:

• Compact Design: Space-saving and flexible, ideal for environments with limited space.

• Advanced Communication: Supports multiple communication protocols (RS-485, Modbus, MPI), enhancing connectivity with other systems and devices.

• Scalability: It supports expansion modules for increased I/O capacity, making it suitable for medium-level automation systems.

• Ease of Use: Compatible with STEP 7-Micro/Win, which provides a simple and intuitive programming environment.

• Reliability: Designed for industrial environments, it provides high stability and reliability for continuous operation.

In conclusion, the Siemens S7-200 CPU 224 XP is a versatile, reliable, and compact PLC, ideal for medium-sized automation applications where high-speed processing and extensive communication options are required. It is particularly beneficial for industrial control systems, machine automation, and monitoring processes that require a high level of flexibility and communication between devices.
