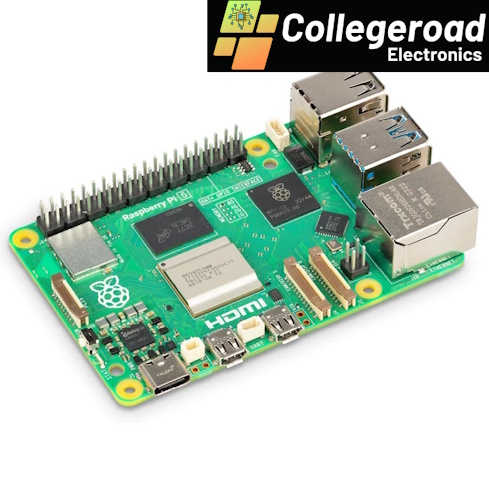

The latest generation of the Raspberry Pi single-board computer, the Raspberry Pi 5 Model B, delivers a huge performance leap over its predecessor. With improved processing power, faster storage, and enhanced I/O, it’s the ideal choice for enthusiasts, educators, and developers alike.
Demo Video
| Category | Specification |
|---|---|
| Model | Raspberry Pi 5 Model B |
| RAM | 4GB LPDDR4X-4267 SDRAM |
| Processor | Broadcom BCM2712, Quad-core Arm Cortex-A76 @ 2.4 GHz |
| GPU | VideoCore VII, OpenGL ES 3.1, Vulkan 1.2, 4Kp60 HEVC decode |
| Storage | – microSD (SDR104)- PCIe 2.0 x1 (NVMe SSD via adapter)- USB boot support |
| Display Output | Dual micro-HDMI (up to 4Kp60 per display) |
| USB Ports | – 2 × USB 3.0- 2 × USB 2.0 |
| Networking | – 2.5Gbps Gigabit Ethernet (over PCIe)- Dual-band Wi-Fi 802.11ac- Bluetooth 5.0 |
| Camera / Display | 2 × 4-lane MIPI (CSI/DSI, shared connectors) |
| Power Supply | – USB-C, 5V / 5A (27W recommended)- Power Delivery (PD) & Fast Role Swap (FRS) |
| Cooling | Active cooling recommended (optional official cooler available) |
| Expansion | – 40-pin GPIO header- 1 × PCIe 2.0 lane (via FFC)- RTC support (battery header) |
| Operating System | Raspberry Pi OS (64-bit), Ubuntu, Manjaro, and other Linux distributions |
| Form Factor | 85.6mm × 56.5mm (same as Raspberry Pi 4 Model B) |
| Release Date | October 2023 |
